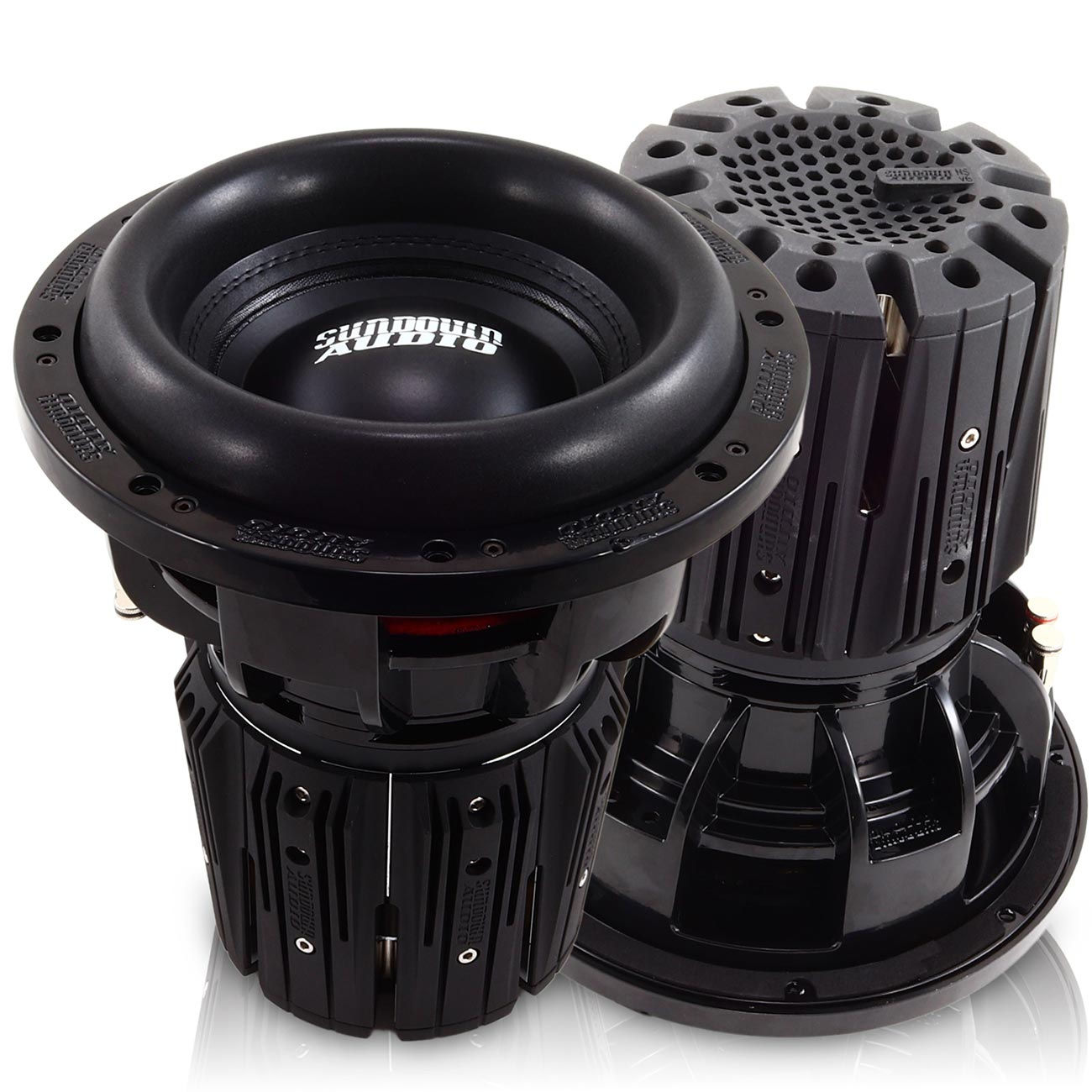

Sundown Audio 10″ NightShade Version 6, 3000W RMS, Dual 1 Ohm Voice Coils
3,000 Watt RMS
Dual 1 ohm voice coils
Custom tooled basket
Custom-tooled ultra-linear spider packs
Black aluminum 3 inch 8-layer voice coil
Extended shorting ring
Eight-layer voice coil
Custom tooled basket
Cast aluminum cooling ring
Ultra-linear spider pack
Unique air exchanging system forces hot air out and cool air in
Aluminum vent ring
Ultra-linear Mega Roll V2 surround
The Nightshade 3,000-watt Neodymium sub is engineered to deliver incredibly powerful low end, with an extremely linear excursion and next-level thermal management. It features an eight-layer voice coil for excellent power handling and an extended shorting ring to minimize distortion and deliver a smooth, highly accurate sound at extreme SPL levels.
Thermal control is optimized with a cast aluminum cooling ring, outer fin array and aluminum vent ring to actively pull heat away from the entire voice coil gap. The subwoofer also incorporates a unique air exchange system for active cooling, enhancing reliability during extended use. With a Mega Roll V2 surround for linear cone movement and class-leading Xmax, the Nightshade is the premier high-performance Neodymium subwoofer in the category.
Sold Individually
RE (Ohms): 1.8759
FS (Hz): 44.386
VAS (L): 6.2193
Qes: 0.54
Qms: 5.4793
Qts: 0.4916
Le (mH): 1.6541
BL (NA): 19.5266
Mms (Grams): 393.5975
Cms (uM/N): 32.6651
Sens (dB @ 1w/1m): 81.7782
Xmax: 35mm
Mount Depth: 11.5”
Sealed Enclosure: Not Recommended
Ported Enclosure: 1.5 cu.ft. net
Recommended Tuning: 32 Hz
Recommended Port Area: 22 sq.in.
Displacement: 0.23 cu. ft.
Depth: 12.24″
Outside Diameter: 11.81″
Cut-Out: 10.1″
