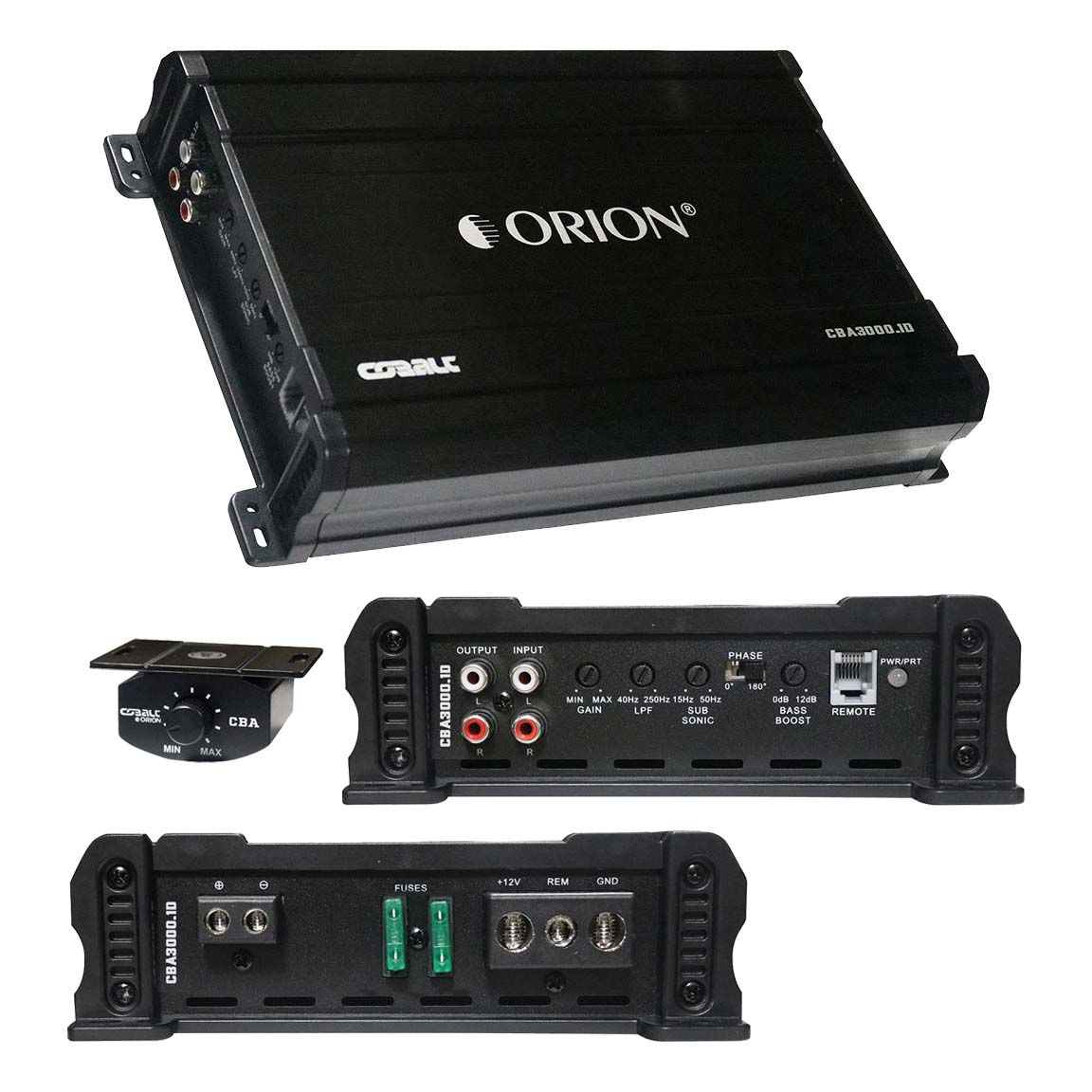

Orion Cobalt Series Monoblock Amplifier, 3000W MAX
3000 Watts Max
1 x 900 Watts @ 1 Ohm
Class D
DIM (W x H x L) 7.1″ x 2.2″ x 10″
Fuses: 2 x 30A (ATC Fuses)
Class D
1 Ohm Stable
Frequency Response: 10Hz – 250Hz
Subsonic (15 – 50Hz)
Low Pass Crossover Continuously variable (40-250Hz)
Supply Voltage: 10 – 16V
Input Impedance: 22kOhm – Signal to Noise Ratio: >90dB
Phase Shift: 0/180 Degrees
Bass Boost: 0 – 12dB Variable
Variable Input Level Control: 0.2V – 6.0V
Wire Specifications:
Positive Terminals: 1 x 4 AWG.
Negative Terminals: 1 x 4 AWG.
Remote Turn-ON Signal: 10 AWG.
Speaker Output Terminals: 10 AWG.
All MOSFET Power Supply & Output Stage
Heavy Gauge / High Current Custom Power and Speaker Terminals
1-Ohm Stable
Remote Gain Controller Included
RCA Out Throughput
12dB Octave Low-Pass Filter
Electronic Crossover Network
Bass Boost Circuit
Intelligent Power and Protection LED Indicator
Soft Turn-on/Turn-off Turn-On Delay
Fault and Protection Monitoring
4-Way Protection: Thermal, DC offset, Short Protection, under & over voltage
